Example of using electromagnetic clutches and brakes (single unit)

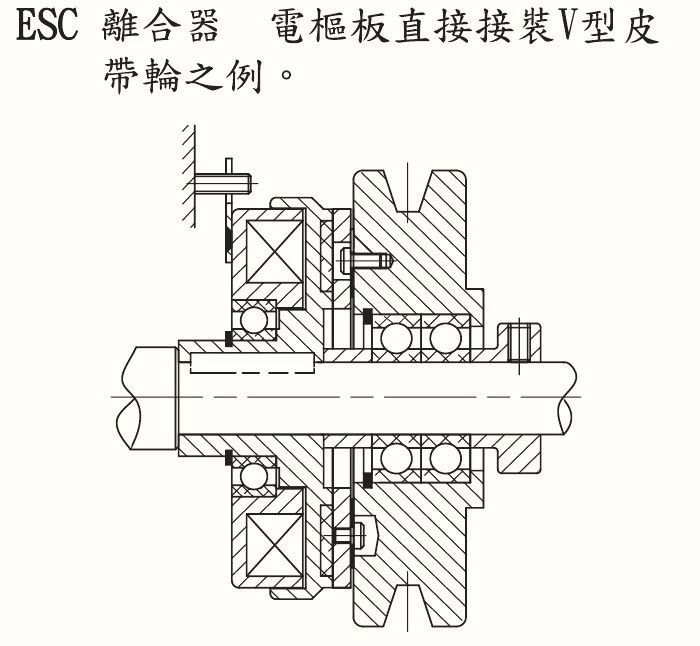

Example of ESC clutch pivot plate directly connected to V-pulley

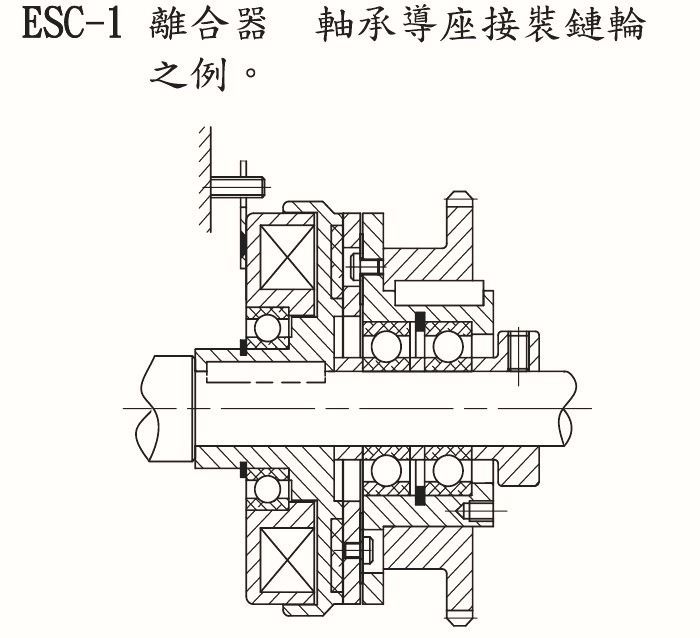

Example of ESC-1 clutch bearing guide with sprockets

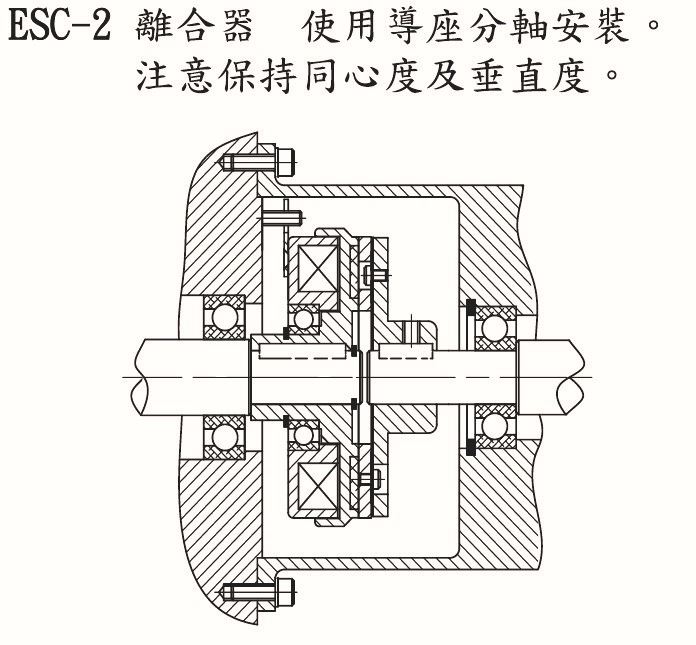

ESC-2 clutch is installed with a split shaft using a guide. Be careful to maintain concentricity and perpendicularity.

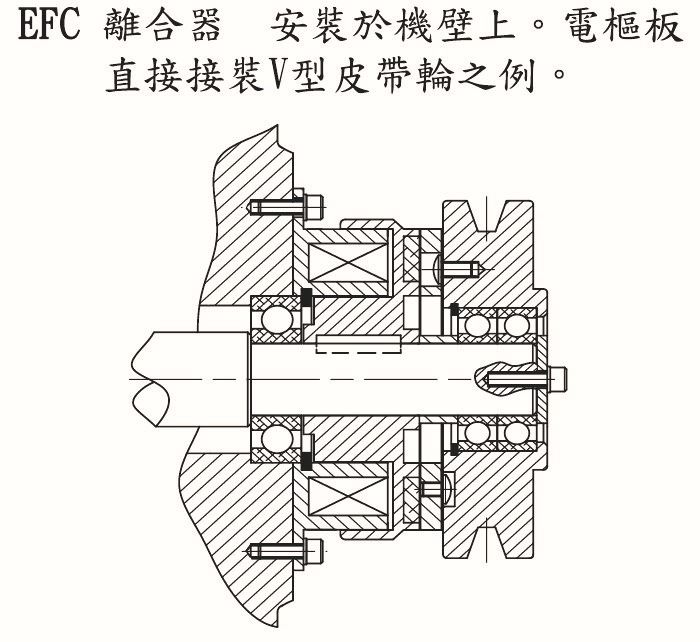

EFC clutch is mounted on the machine wall. Example of direct connection of armature plate to V-belt pulley

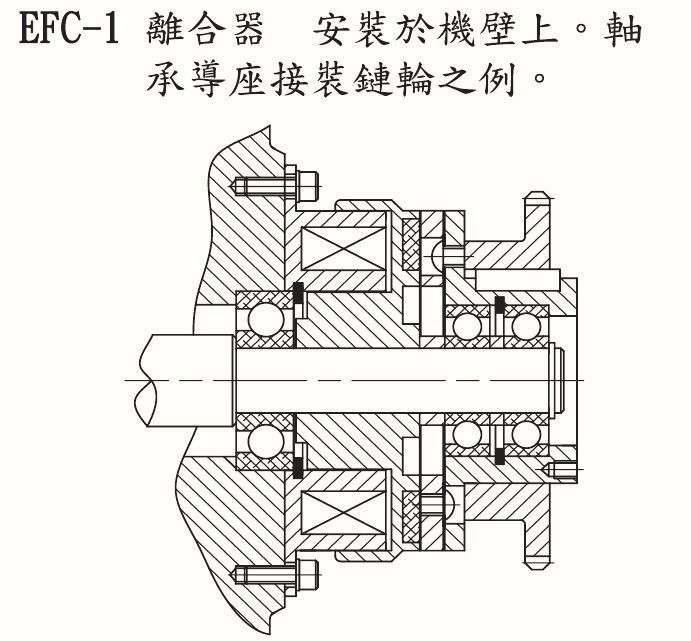

EFC-1 clutch is mounted on the machine wall. The bearing guide is connected to the sprocket.

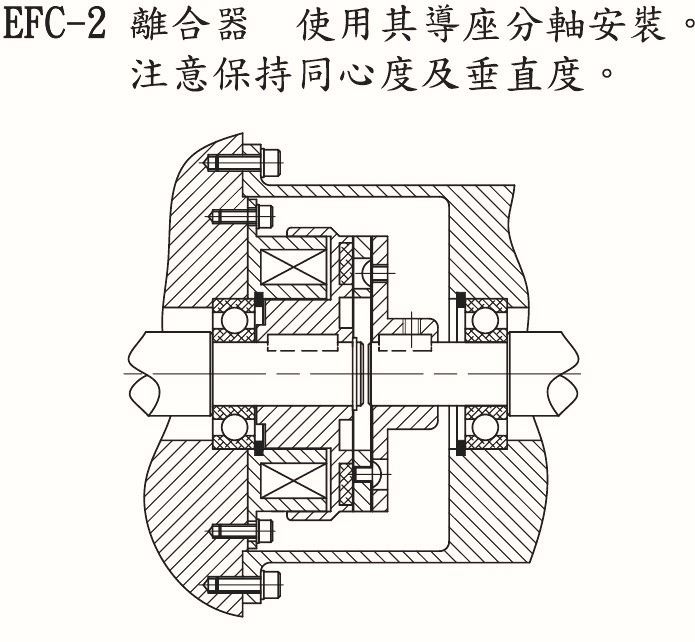

The EFC-2 clutch is mounted on a split shaft using its guide. Be careful to maintain concentricity and straightness.
